Braunston Marina Plot
Marina Plot

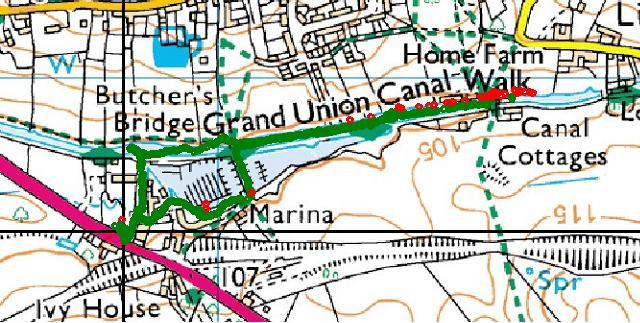

This image is a screenshot of the plotted results of the Braunston Marina trial. The green dots indicate the position of successful transmissions, the red dots indicate success but some transmission retries. The black cross-hair shows the position of the base station. As the range increased, a large metal workshop in the line of sight interfered with the transmission path, hence the number of red dots.
